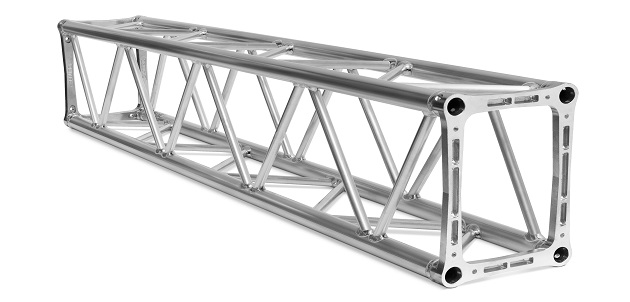

Our RH40SA is on the front line of rectangular truss that helps tame your demanding projects, as it has been specifically developed for applications that require heavy-duty performance. A perfect choice for rental companies, it features our end plated connection system for greater resistance to twisting, decrease in bending and absolute connection compatibility between other trusses throughout the years due to no risk of deformation. Diagonals on all four sides make it fully anti-torsive.
Due to its rectangular format, storage and transport space is reduced by 25% compared to the QH40 truss, but still provides the same load capacity as our QH40 heavy-duty series and 30% more than our QX40 series.
- 22 x 2mm diagonals
- 48 x 3mm main chords
- Compatible with DADO K8 for corner applications
- Compatible with DADO K12 for connection on both ends with 30 x 30mm RH40 end plated truss
- CE certified
- Made from 6082 T6 aluminium alloy
