10x8m Double-Pitch Roof

10x8m Double-Pitch Roof

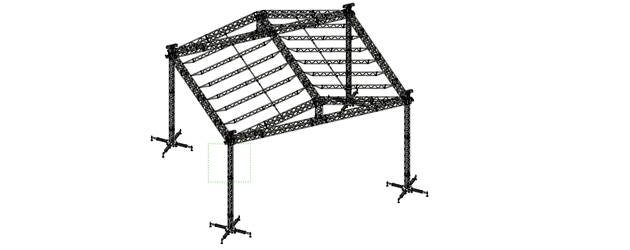

Double-pitch roof system. Dimensions: 10x8m. Uniformly distributed load UDL: 4800 kg

Call us for offer

Get your quote

Basic info

  • Distributed Load considering wind pressure: 3552 kg
  • Uniformly distributed load UDL: 4800 kg
  • Weight: 1424 kg
  • Transport volume: 18 m3
  • Covered area/storage volume ratio: 4,5
  • Towers: 4 x Towerlift 3
  • Trusses for lifter: QX30SA
  • Trusses for roof: QX40SA+FX30SA
  • Roofing sheet: Self-extinguishing Class 2 - 650 g/sqm

Double-pitch roof systems are the result of the research of high performance and safe solutions. Roofing mounted on manual lifters, these structures may be assembled without electrical-driven parts. The lifter is the well-known Towerlift 3 and the whole system can be raised up to 6 metres above the ground. They can be fitted with lateral PA wings for hanging audio
and video systems.
