FL52 - Reliable for Fairs & Medium-sized Installations

Flat section high-load 6082 aluminium alloy truss with 52 cm long sides and fork connection.

Call us for offer

Get your quote

Basic info

  • Chords A: extruded tube Ø 50 x 4 mm EN AW 6082 T6
  • Diagonals B: extruded tube Ø 30 x 3 mm EN AW 6082 T6
  • Ends C: forks connector EN AW 6082 T6

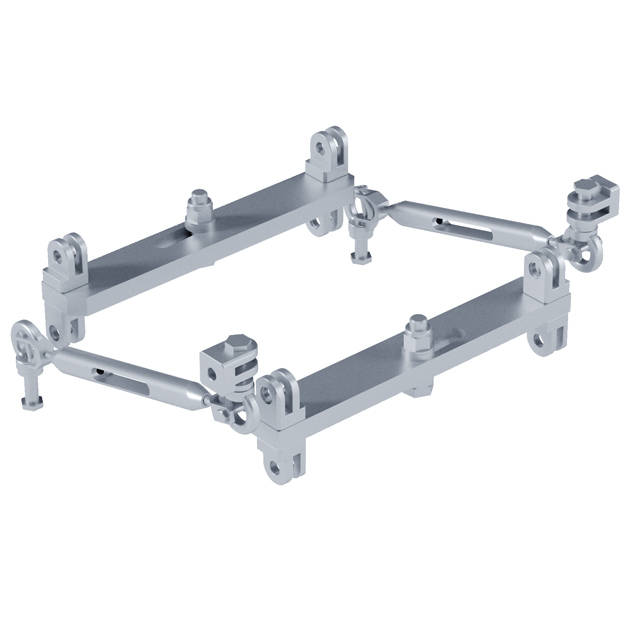

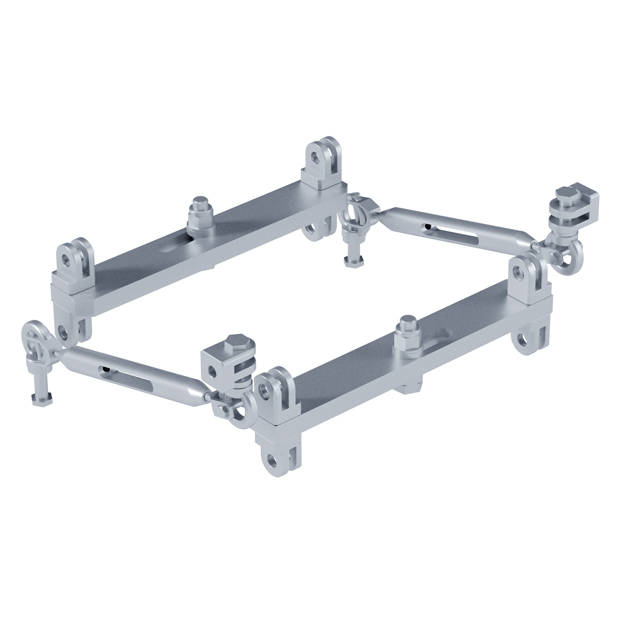

  • Connection system FL52CS04: four-way connection; KHLP: Cylindrical pin + safety R-clip; KHLM + KHLF

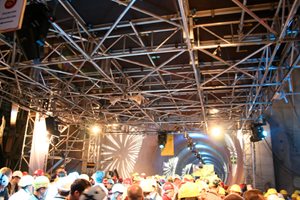

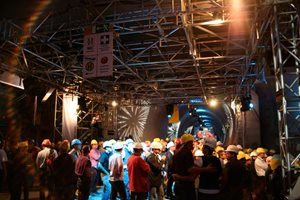

This is the most suitable LIBERA system for fairs and medium-sized installations. This modular grid structure can be used to build single spans of up to 16/18 meters in length with standard centre-to-centre distances (50 cm, 1 and 2 meters).


  • LIBERA System FL52

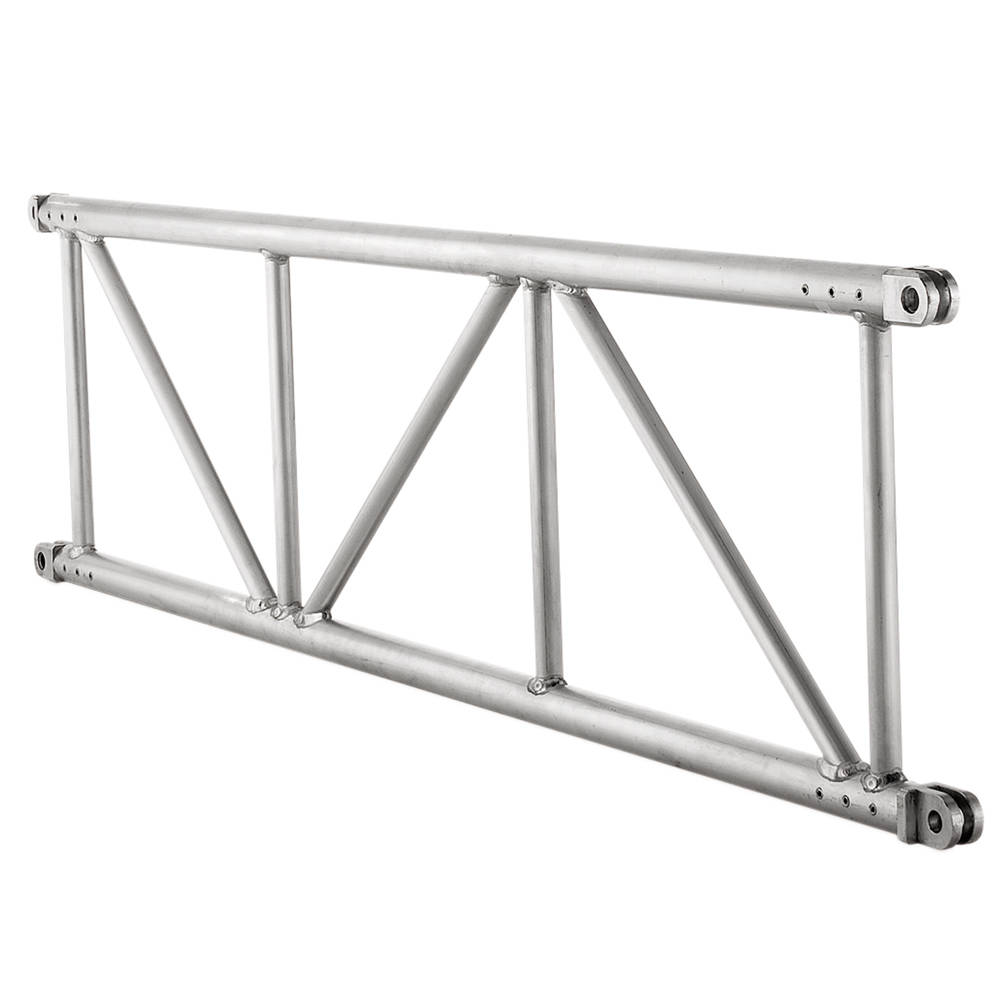

  • 33 to 186 cm flat trusses - FL52
  • Available in 2 versions: Standard version & Version with built-in roofing sheet guides
  • Ends with aluminium forks
  • Made of EN AW-6082 T6 aluminium with 50 x 4 mm tubes and 30 x 3 mm diagonals
  • Universal 4-way connection
