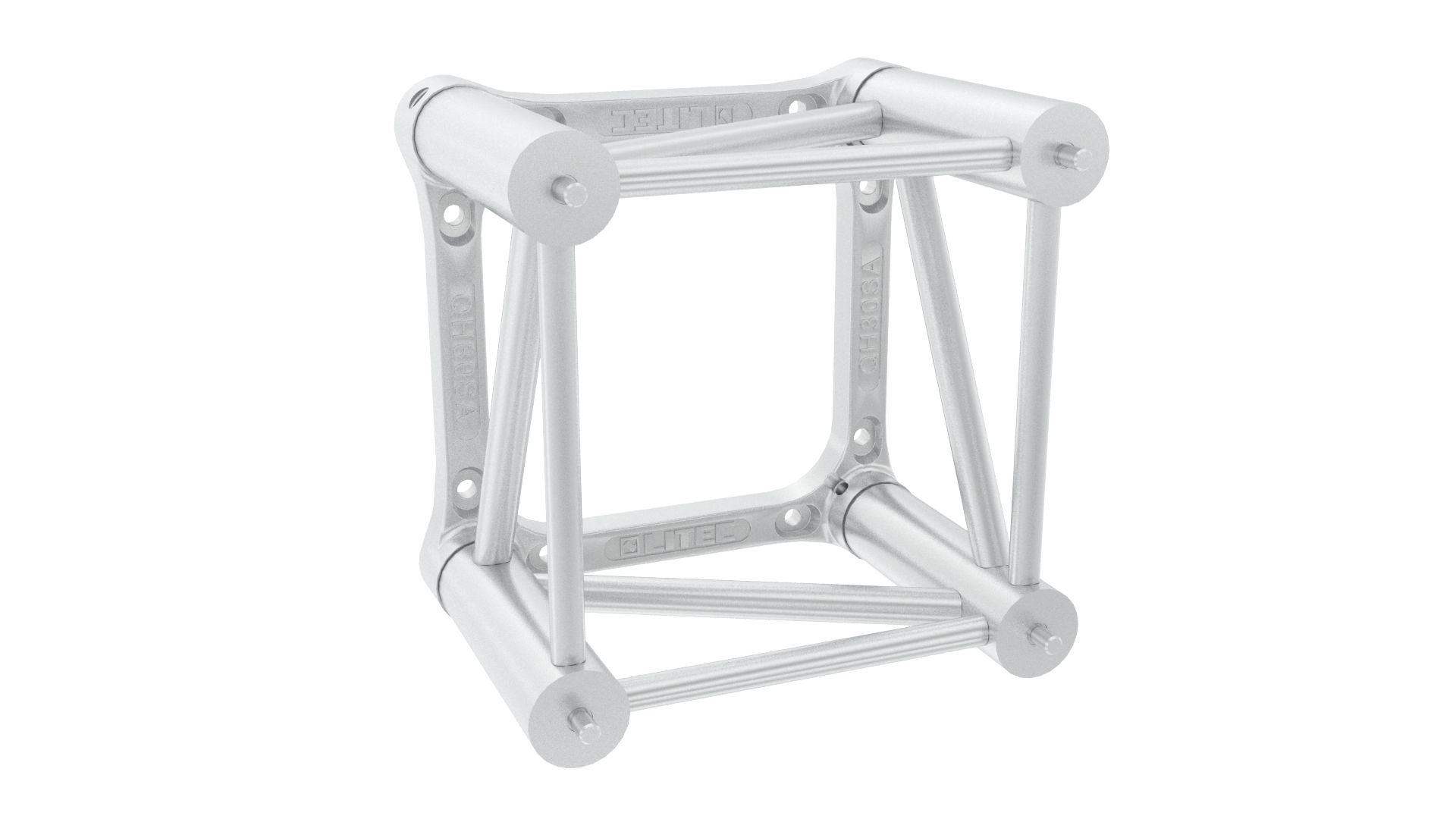

QH30SA

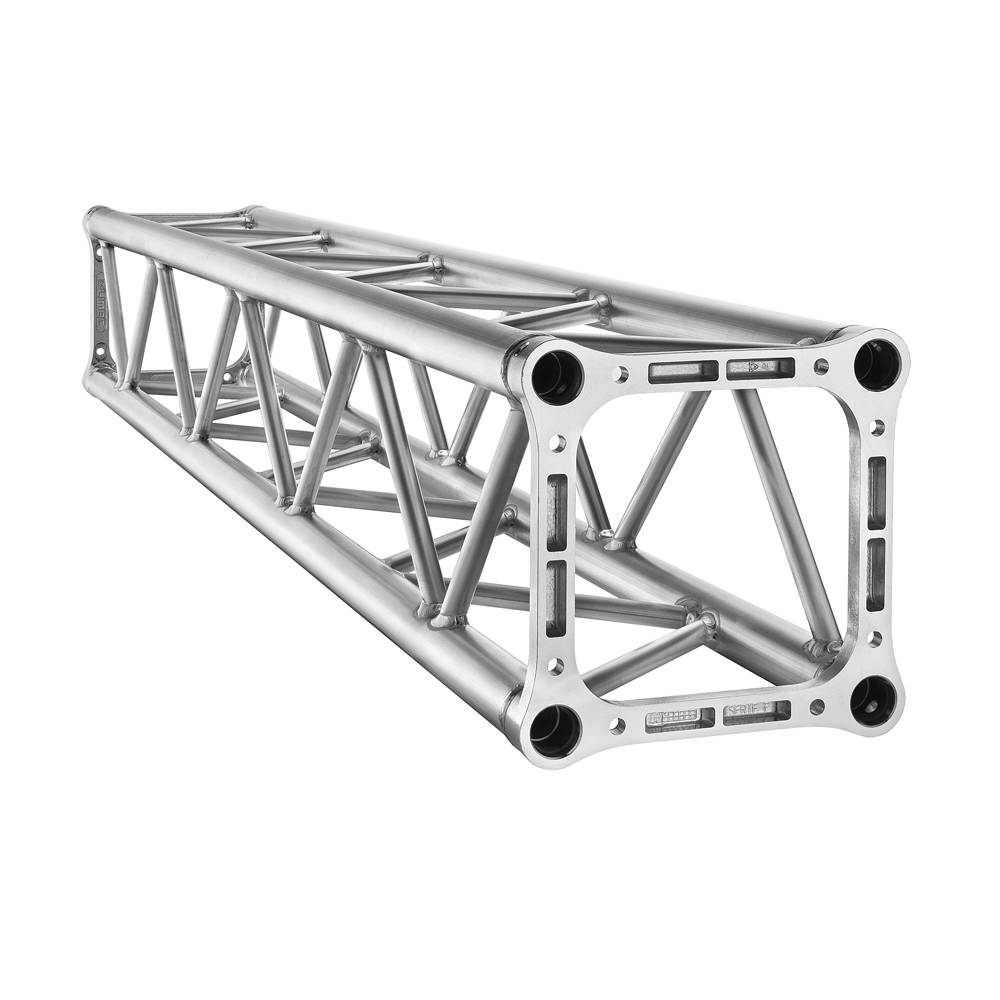

Square section heavy duty aluminium truss twist-resistant version with 29 cm long sides.
  • Chords A: extruded tube Ø 48 x 3 mm EN AW 6082 T6
  • Diagonals B: extruded tube Ø 20 x 2 mm EN AW 6082 T6
  • Ends C: aluminium casting plate EN AC 42200 T6
  • Connection systems QXFC: quick-fit kit; QXSM10: bolt connection kit

It substitutes the old Heavy Duty series QD30S and QD30SA. It is characterized by the introduction of Ø 48x3 mm chords and Ø 20x2 mm diagonals on all the faces. This truss constitutes Varitower 3 – 30 and Flyintower 9.5-600.
