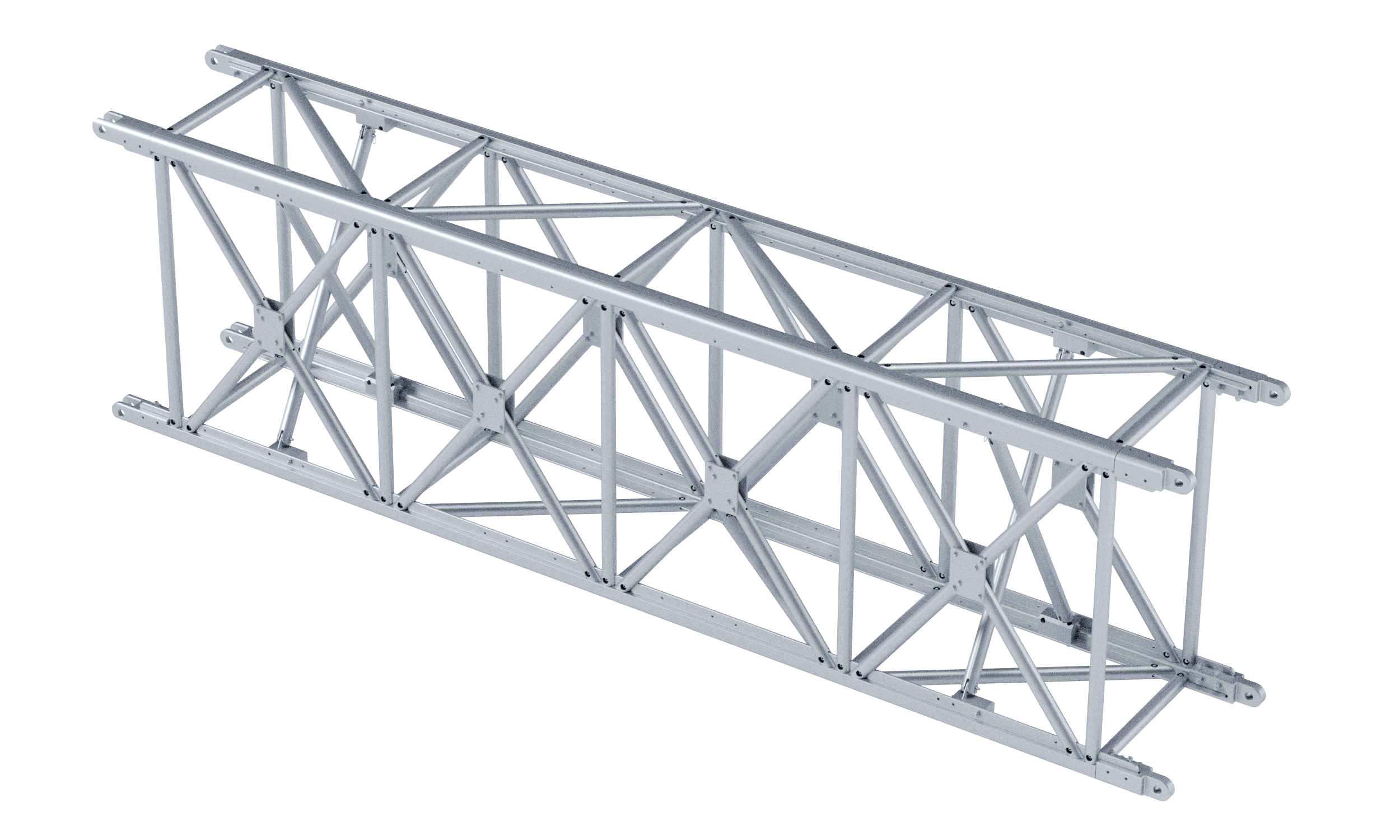

Rectangular section High Load aluminium truss with extraordinary dimensions; it is 84 cm wide, 146 cm
high and 500 cm long, and weighs 430 kg.
- Chords A: extruded aluminium EN AW 7003 T6
- Diagonals B: extruded aluminium EN AW 7003 T6
- Ends C: aluminium forks connector EN AW 7003 T6
- Connection system: 11SMnPb37
It is made in highperformance aluminium alloy EN AW-7003 T6, among the aluminium series with the best mechanical characteristics. Thanks to the double number of diagonals on the vertical faces, the Steroid version
has better performances thank the Regular version. The truss can be used in large installations intended for entertainment, for temporary and semi-permanent structures. At maximum load spans it undergoes virtually no bending.
