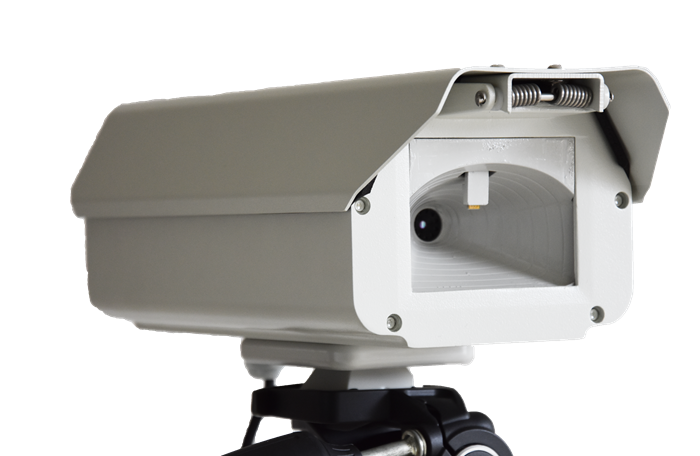

S21 Thermal Imager







DESCRIPTION





The IT21 thermal imager is a device that uses...


DSC_1029.JPG      DSC_1028.JPG  DSC_1031.jpg




MAIN FEATURES

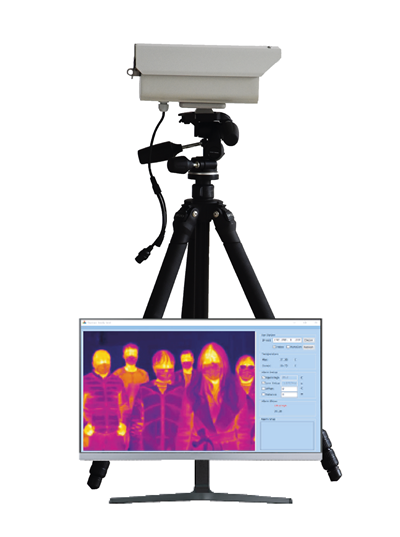

• Fixed mount purposes, infrared thermal imager; IT21-01.png

• Can be placed at access gates for unattended temperature recognition and access control, rugged design, metal case body;

• Powered by a 12 Volts - DC power adaptor;

• Ethernet connection;

• Continuous real time reading with “automatic detection” of the highest temperature spotted - detection time 0,5 sec;

• BODY MODE SET UP: precision ±0,5° - range 20-45 °C;

• Reading distance from 0,5 to 1,5 meters;

• Body temperature non-contact detection, to eliminate any risk of cross infection;

•Voice alarms when detecting dangerous temperature (manually set by the user);

• Automatic picture taking function once exceeded safety temperature set up;

• Wall & tripod mount, available as separate accessories;






ACCESSORIES KIT

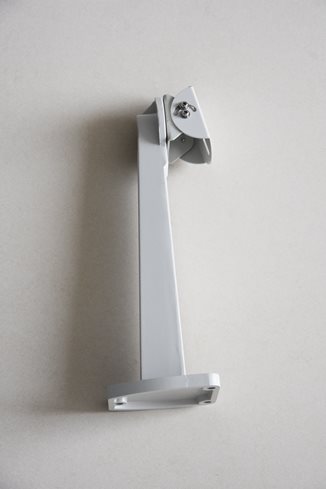

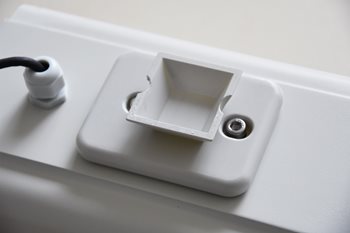

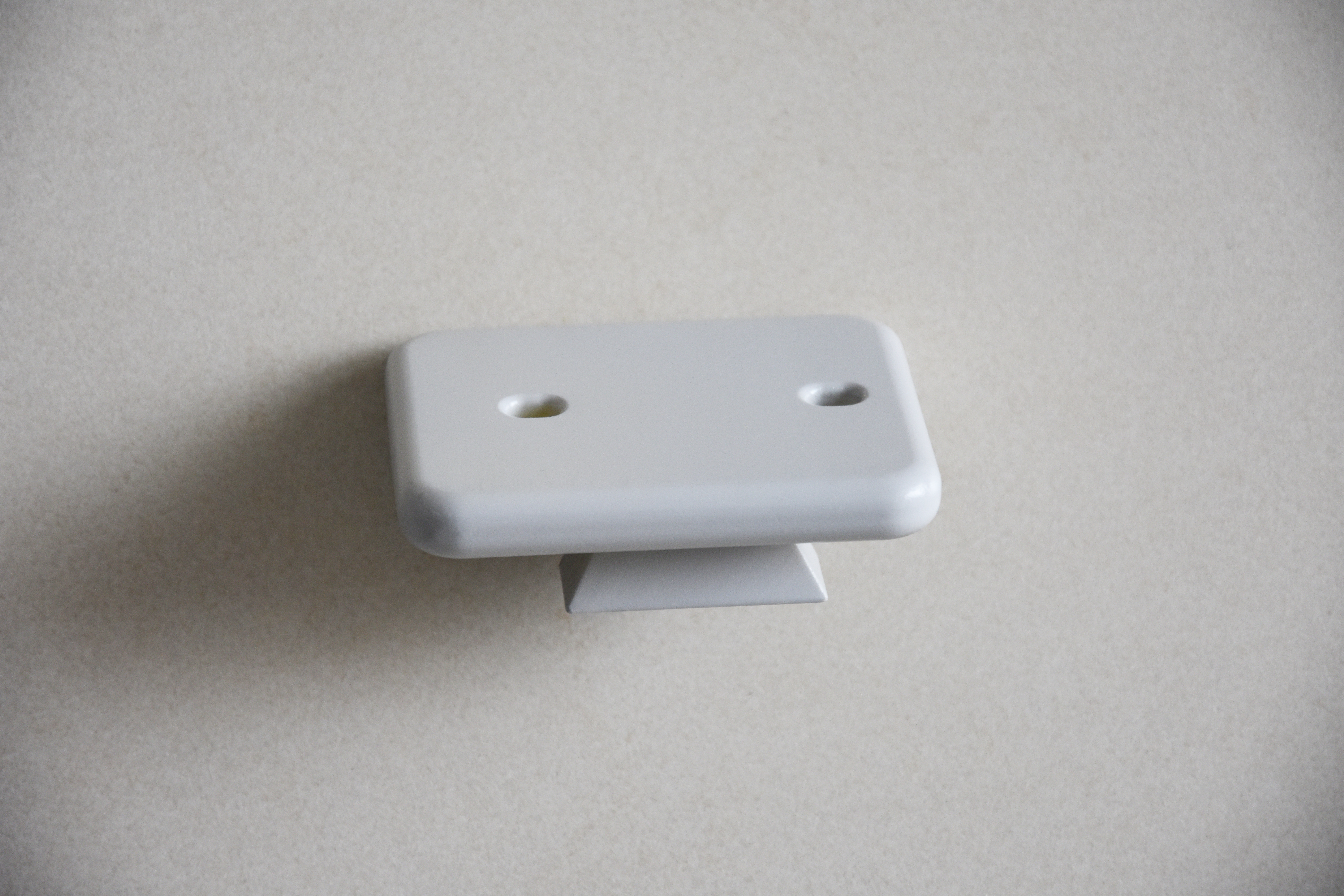

Wall bracket mount                                  Tripod connection plate

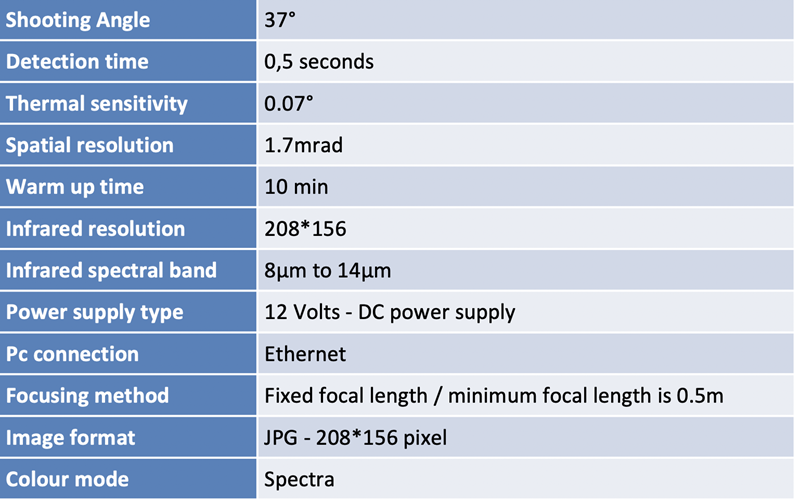

TECHNICAL SPECIFICATIONS
