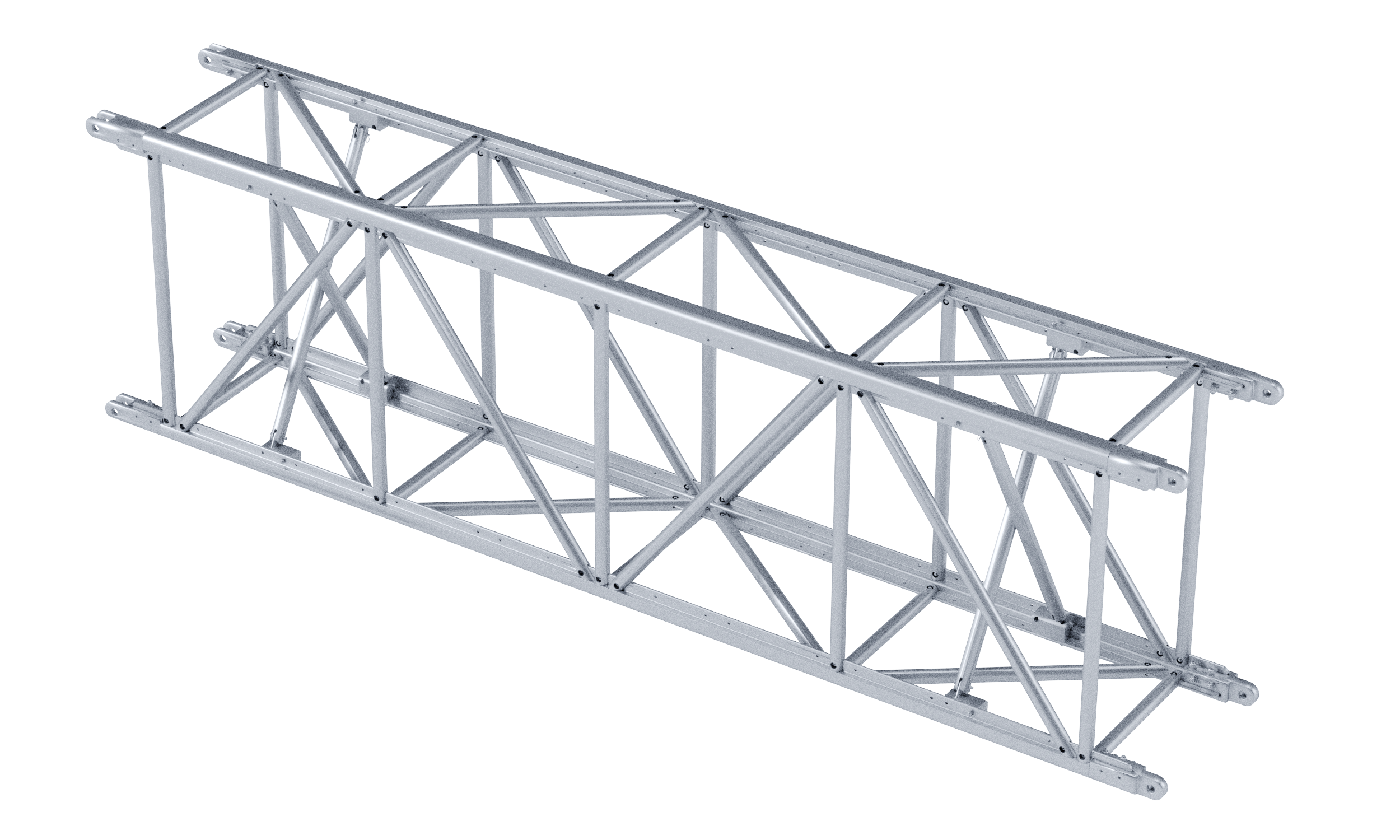

Rectangular section High Load aluminium truss with extraordinary dimensions; it is 84 cm wide, 146 cm high and 500 cm long, and weighs 430 kg.
  • Chords A: extruded aluminium EN AW 7003 T6
  • Diagonals B: extruded aluminium EN AW 7003 T6
  • Ends C: aluminium forks connector EN AW 7003 T6
  • Connection system: 11SMnPb37

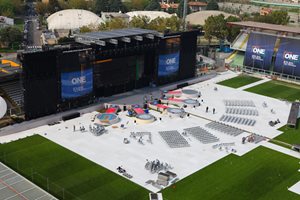

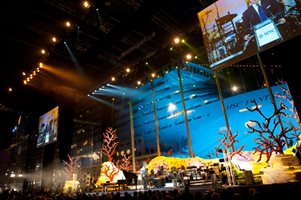

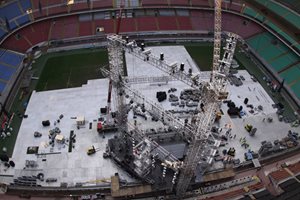

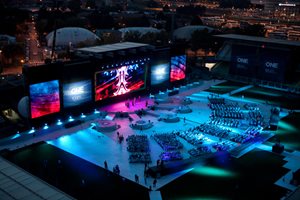

It is made in high performance aluminium alloy EN AW-7003 T6, among the aluminium series with the best mechanical characteristics. The truss can be used in large installations intended for entertainment, for temporary and semi-permanent structures. At maximum load spans it undergoes virtually no bending.
