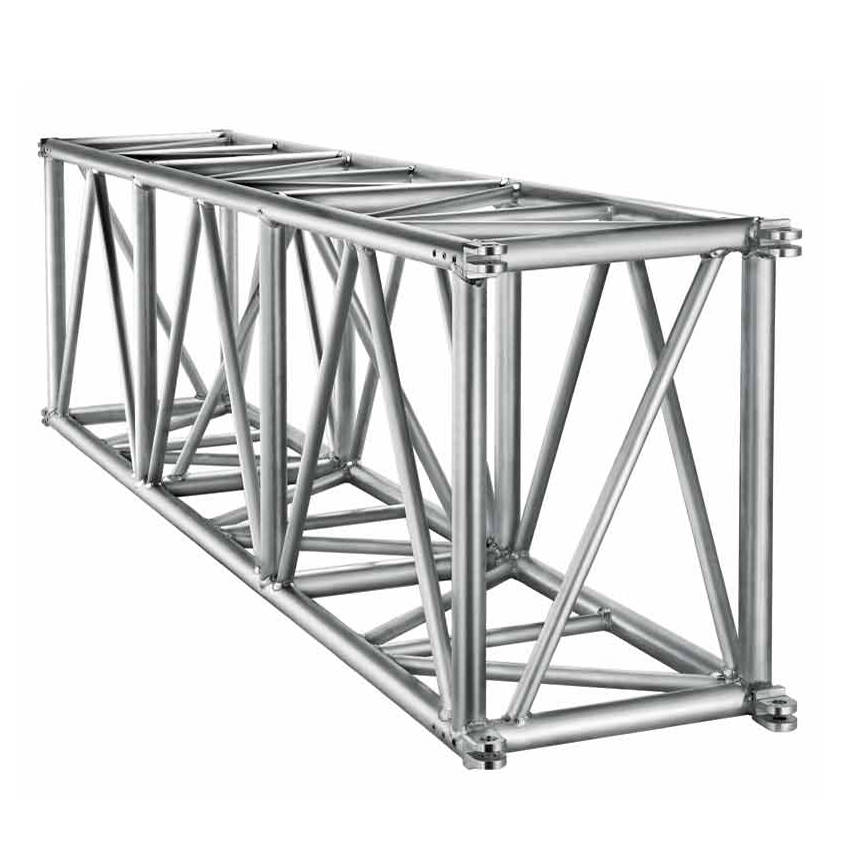

RL76A - High Capacity Truss

Rectangular section high load aluminium truss twist-resistant version with 76 x 52 cm sides.

Call us for offer

Get your quote

Basic info

  • Chords A: extruded tube Ø 50x4 mm EN AW 6082 T6
  • Diagonals B: extruded tube Ø 30x3 mm EN AW 6082 T6
  • Braces C: extruded tube Ø 50x4 mm EN AW 6082 T6
  • Ends D: steel forks connector 11SMnPb37

It is diagonalized on all faces and is provided with steel fork connections. It ensures high load capacity on medium-long spans thanks to the design of its main components.
