QL85A

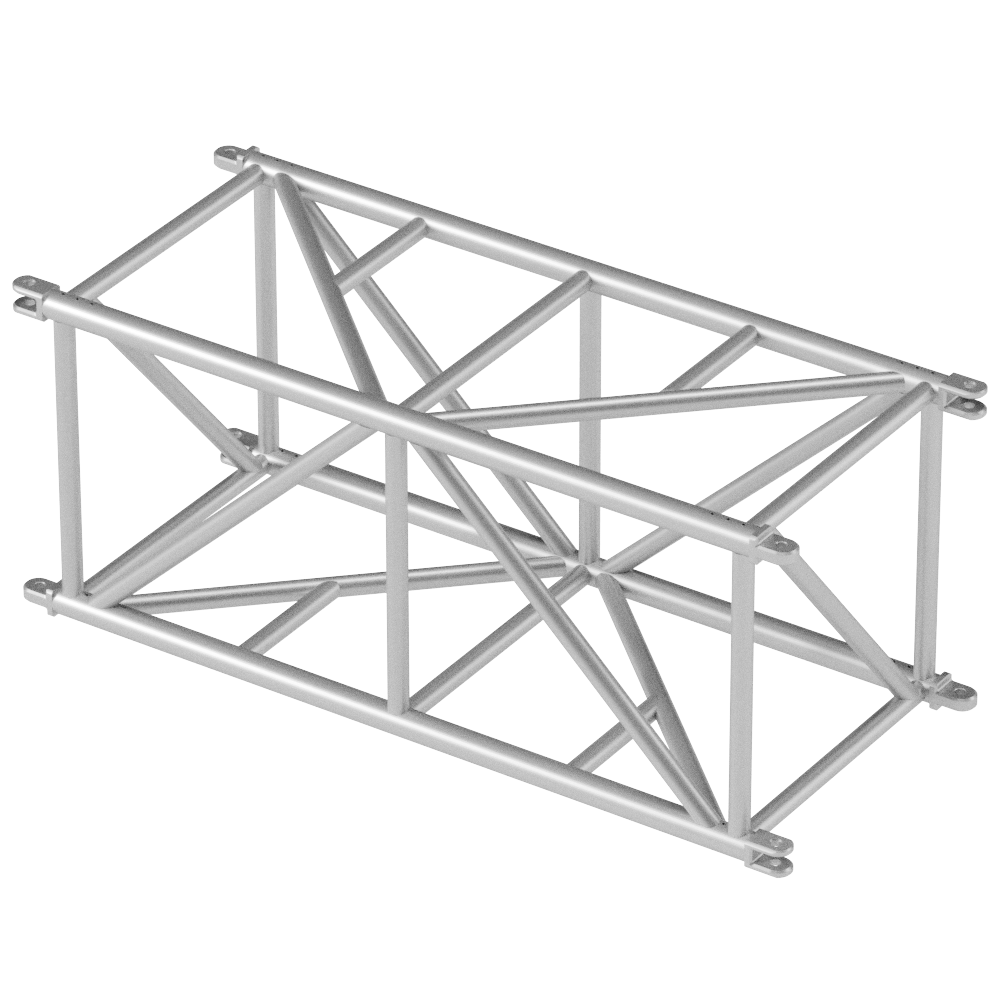

Square, high load aluminium truss with 85cm sides, steel fork connections and 70x5mm chords.
  • Chords A: extruded tube Ø 70x5 mm EN AW 6082 T6
  • Diagonals B: extruded tube Ø 50x4 mm EN AW 6082 T6
  • Braces C: extruded tube Ø 50x4 mm EN AW 6082 T6
  • Ends C: steel forks connector  EN AW 6082 T6
  • Connection systems KHLP24L97: cylindrical pin+ safety R-clip
Square, high load aluminium truss with 85cm sides, steel fork connections and 70x5mm chords. Due to its elevated moment of inertia and high strength fork connections, it is mainly used in the construction of towers.

Download PDF
