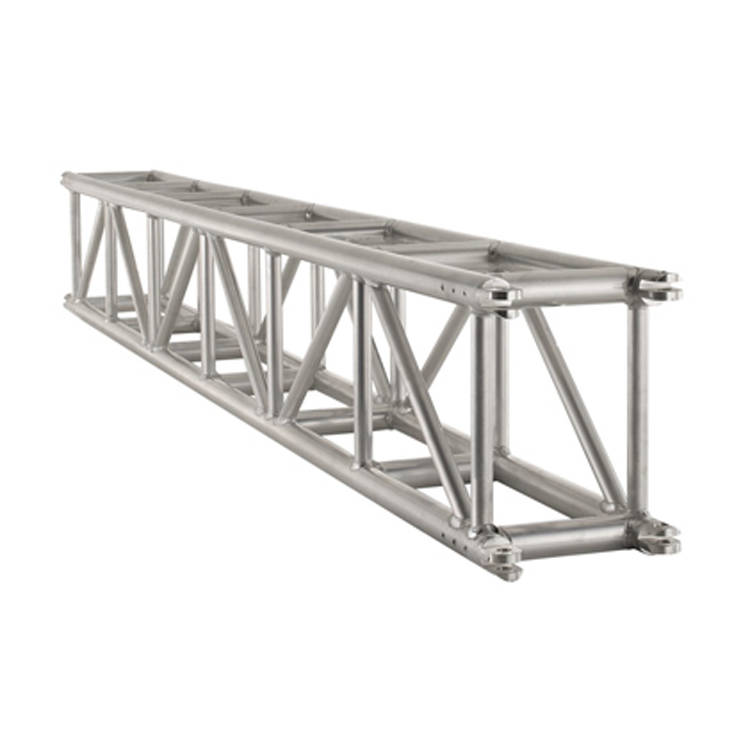

RF40 - Mid Range System

Heavy Load 40x29cm rectangular-section aluminium truss.

Call us for offer

Get your quote

Basic info

  • Chords A: extruded tube Ø 50x3 mm EN AW 6082 T6
  • Diagonals B: extruded tube Ø 30x3 mm EN AW 6082 T6
  • Braces C: extruded tube Ø 30x3 mm EN AW 6082 T6; Braces D: extruded tube Ø 50x3 mm EN AW 6082 T6

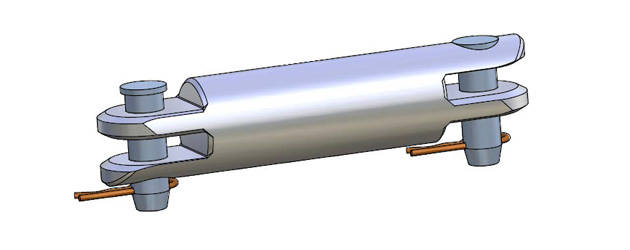

  • Ends E: aluminium fork connector EN AW 6082 T6

It is the most compact truss of the High Load series with a fork connection. Suitable for quite long spans, it keeps an optimum ratio between maximum load and truss deflection. The horizontally-aligned fork ends allow the truss to be used with only minimal accessories to build grid structures.
