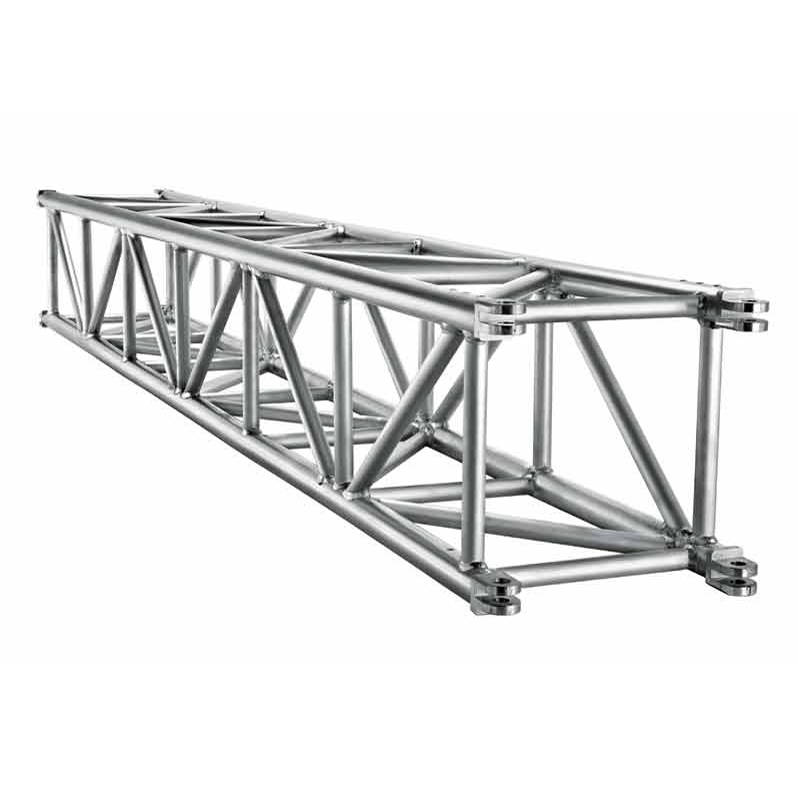

QL40A - Elevated Resistance Truss

Square section high load aluminium truss with 40 cm long sides.

Call us for offer

Contact us

Basic info

  • Chords A: extruded tube Ø 50x4 mm EN AW 6082 T6
  • Diagonals B: extruded tube Ø 30x3 mm EN AW 6082 T6

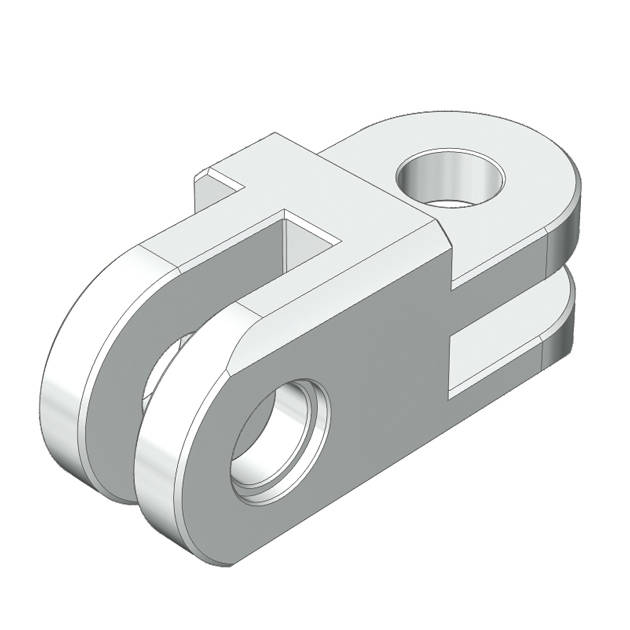

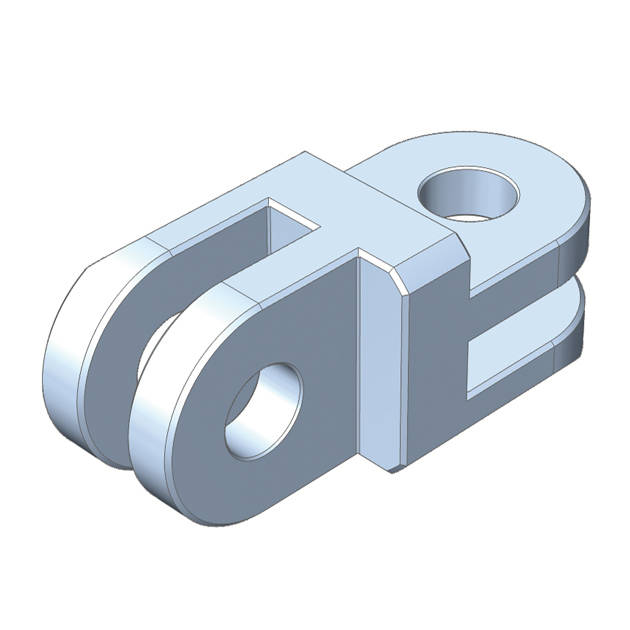

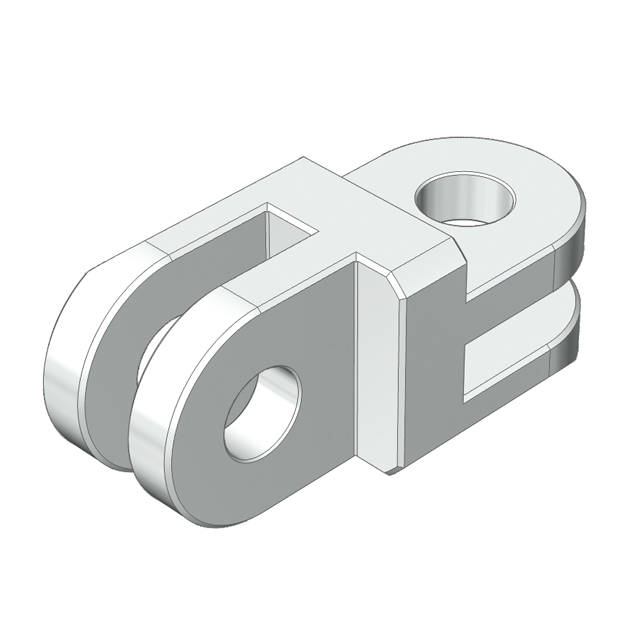

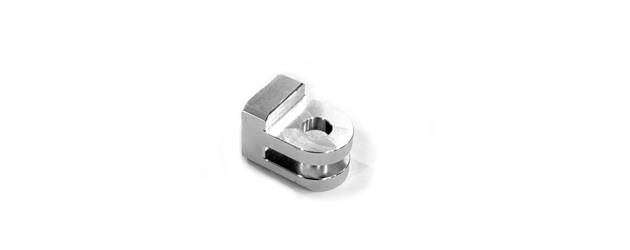

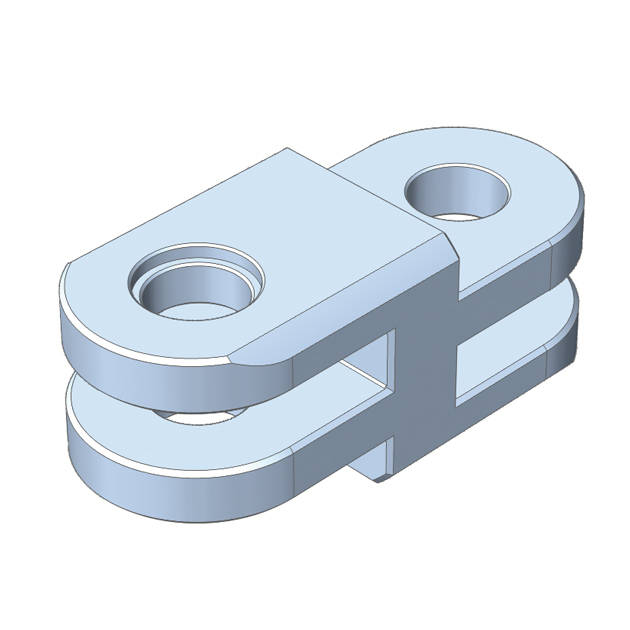

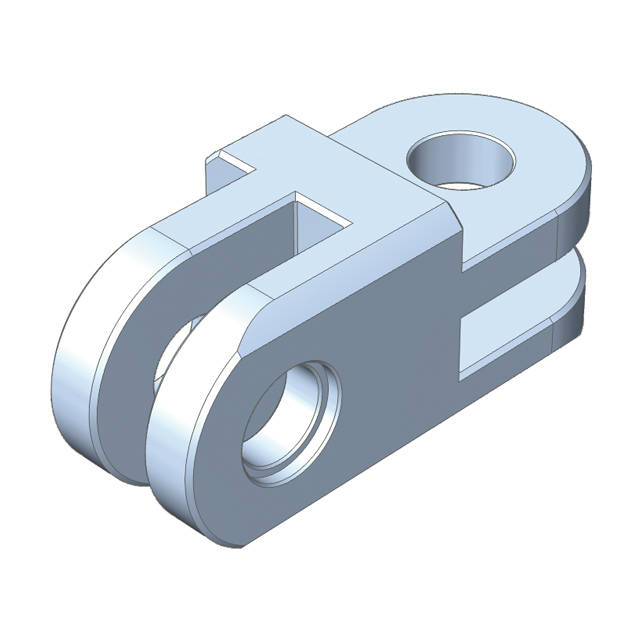

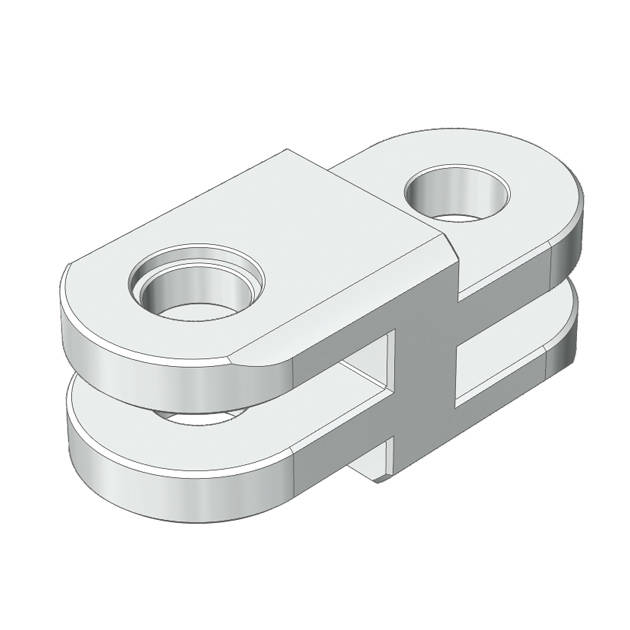

  • Ends C: aluminium forks connector EN AW 6082 T6

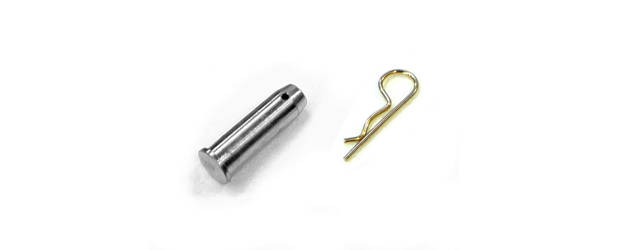

  • Connection system KHLP: cylindrical pin + safety R-clip

It is diagonalized on all faces and is provided with an aluminium fork connection. This guarantees excellent rigidity and elevated resistance in both horizontal and vertical applications despite its reduced section.
