QL52A

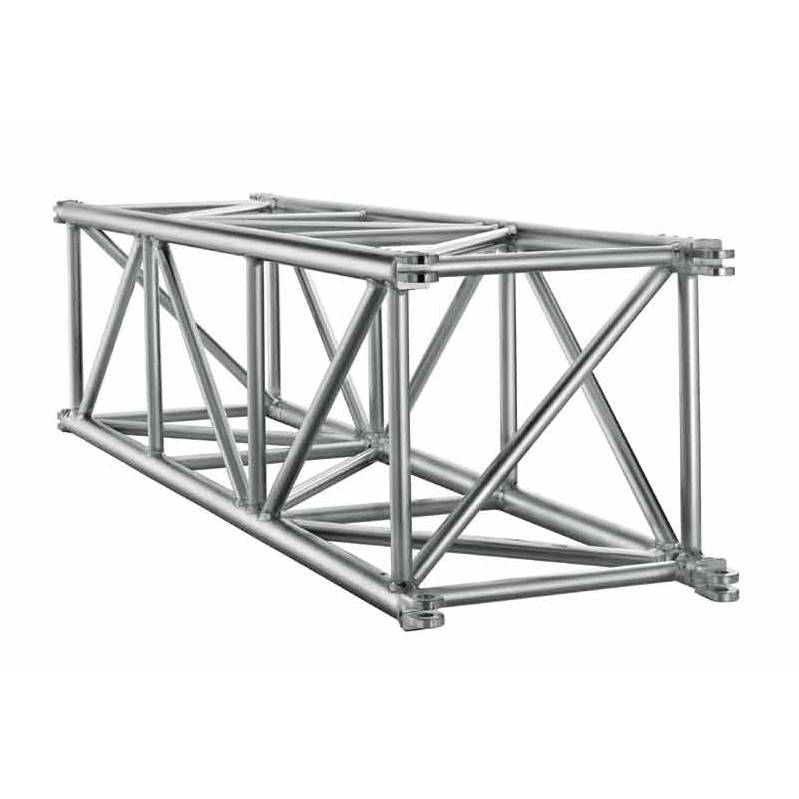

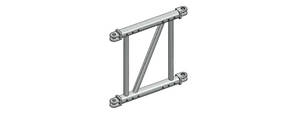

Square section high load aluminium truss twist-resistant version with 52 cm long sides.
  • Chords A: extruded tube Ø 50x4 mm EN AW 6082 T6
  • Diagonals B: extruded tube Ø 30x3 mm EN AW 6082 T6
  • Ends C: aluminium forks connector EN AW 6082 T6
  • Connection system KHLP: cylindrical pin + safety R-clip

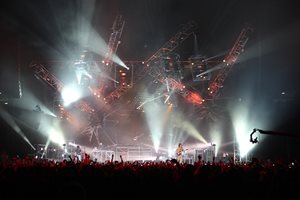

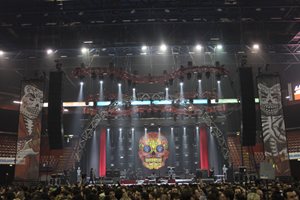

It is diagonalized on all faces and is provided with an aluminium fork connection. It shows great versatility in use both as a tower (Maxitower 52) and as a span.
