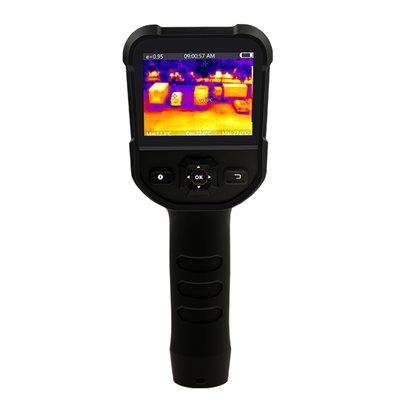

ET200 Portable Thermal Imager




DESCRIPTION

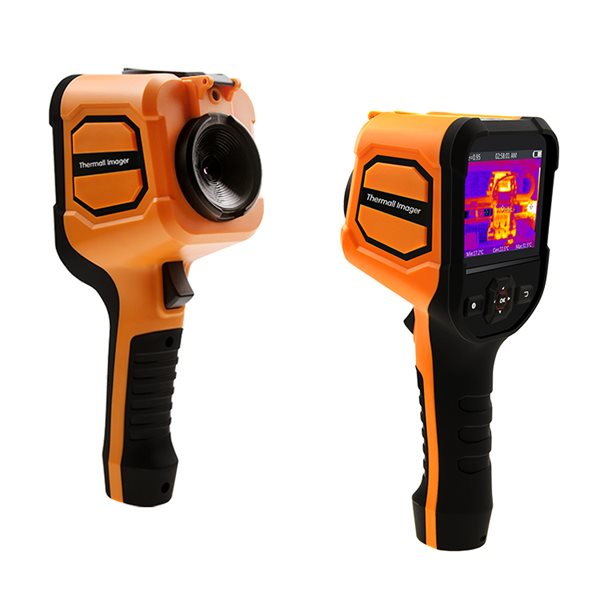

The ET200 thermal imager is a device that uses infrared thermal imager technology to detect the infrared radiation of the target object and processes the signal: photoelectric conversion and other means for converting the image of the temperature distribution of the target object into a visible image. The ET200 thermal imaging camera accurately quantifies the actual recorded heat and detects images of the entire target object in real time in the form of a surface, so that you can accurately identify a suspicious area that is heating up.01-(1).jpg

MAIN FEATURES


06-(1).jpg• Handheld, lithium ion battery powered (4-6 hours autonomy), infrared thermal imager;

• Continuous real time reading with “automatic detection” of the highest temperature spotted with a detection time of only 0,5 sec from 0,5 to 1,5 meters distance;

• Specifically designed to monitor body temperature non-contact detection, so zero  risks of cross infection, in a non invasive way during FESITIVALS, EXHIBITIONS, EVENTS as well as schools, businesses, offices and public place in general;

• 3.5” TFT - 640X480 resolution on board display;

• Battery life 4-6 hours;

• BODY MODE SET UP: precision ±0,5° - range 20-45 °C;

• Sound alarms when detecting dangerous temperature (manually set by the user);

• Image storage capacity 6 GB built-in flash memory, accessible via Micro USB;

• Lightweight rugged design, withstands daily handling and use;

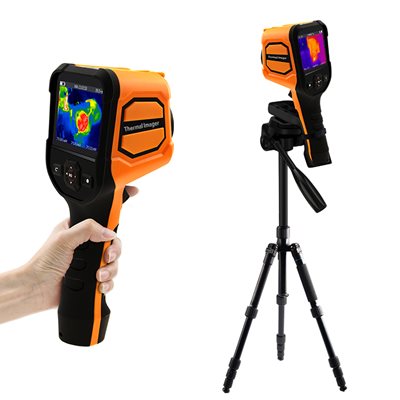

• Tripod mount option for fixed installation;

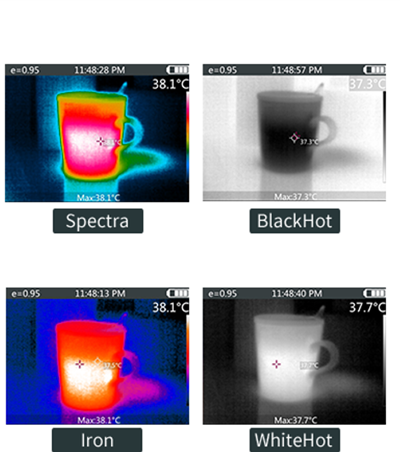

FOUR COLOURS IMAGING MODE



Our Thermal Imager provides 4 type of color palettes functions: SPECTRA, BLACKHOT, IRON, WHITEHOT for you to choose the appropriate palette to better show the details you need of the targeted object.

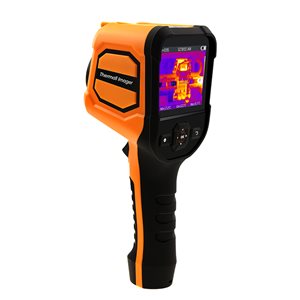

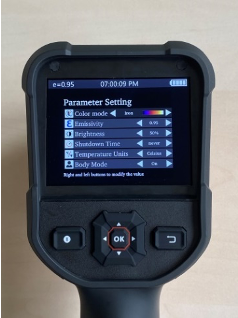

technical-(1).png 08.jpgtechnical-specifactions-(1).png

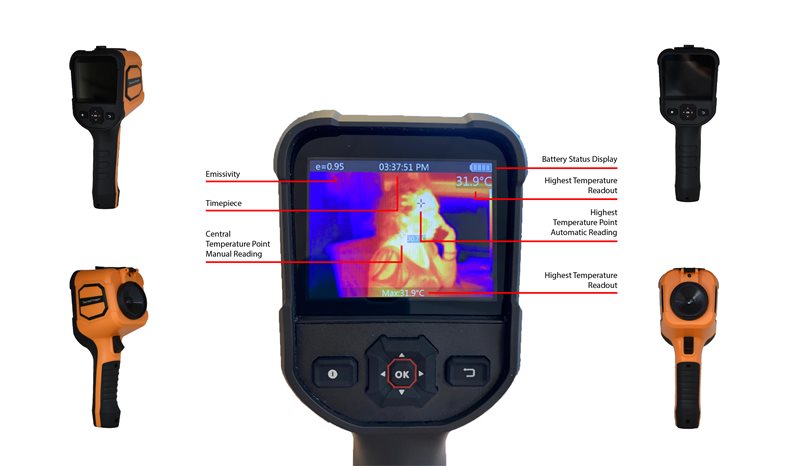

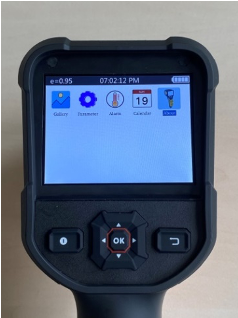

DISPLAY FUNCTION OVERVIEW

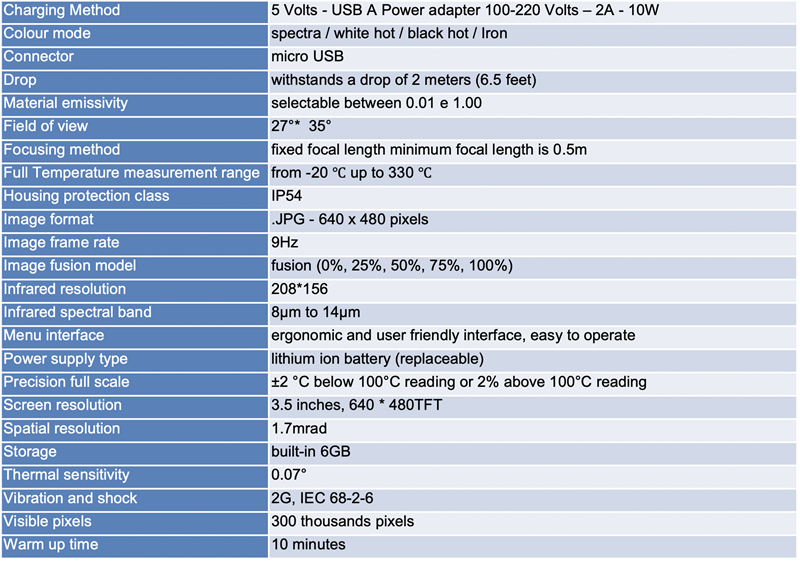

TECHNICAL SPECIFICATIONS









APPLICATION

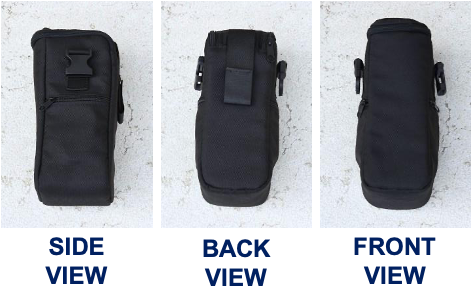

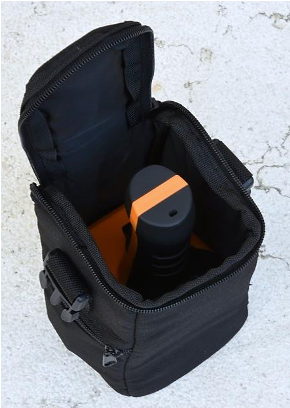

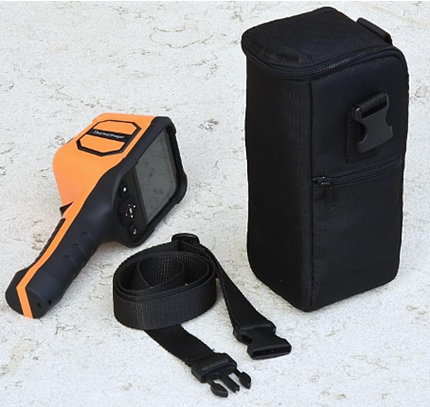

HOLSTER




Holster1.png  Holster4.png
