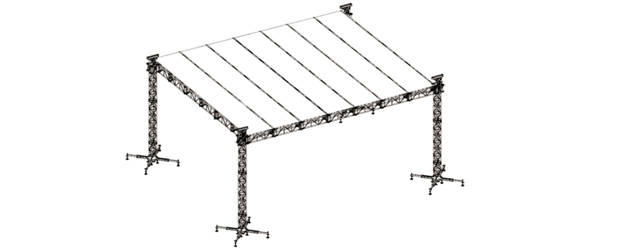

LIBERA FL52 single-pitch roof system. Dimensions: 14x12m. Uniformly distributed load UDL: 5000 kg

Call us for offer

Get your quote

Basic info

  • Dimensions: 14 x 12 m
  • Heights range: from 6 to 9 m
  • Main truss: LIBERA FL52
  • Towers: 4 x Varitower 3-40
  • Uniformly distributed load UDL: 5000 kg ≈
  • Chain hoists: 1000 kg
  • Total weight: 3670 kg
  • Volume: 22 m3
  • Set-up time & number of workers: 4 hrs / 4 w

LIBERA is an open structural system. Roof systems in LIBERA 52 consist of Maxitowers and a LIBERA FL52 grid structure.
The actual span can reach 16 metres, to which side wings may be added.
Some standard configurations are available, but – as always in the case of LIBERA – countless solutions are possible thanks to the modular system.
