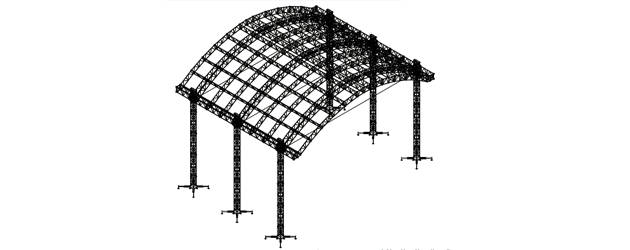

22x19m LIBERA TUNNEL

22x19m LIBERA TUNNEL
LIBERA tunnel. Dimensions: 22x19m. Uniformly distributed load UDL: 13000 kg

Call us for offer

Get your quote

Basic info

  • Dimensions: 22x19 m
  • Heights range: from 8 to 14 m
  • Main truss: LIBERA FL76
  • Towers: 6 x Maxitower 52
  • Uniformly distributed load UDL: 13000 kg ≈
  • Chain hoists: 2000 kg
  • Total weight: 9700 kg
  • Volume: 62 m3
  • Set-up time & number of workers: 8 hrs / 8 w

Not just straight: LIBERA can be “bent” and used to create rounded components simply by adding small accessories to normal trusses. With simple stratagems you can go from flat systems to arched systems and vice versa. Tunnels may be
created with front or side roof ridges.
No other product in this sector is so versatile, and riggers who fully understand the concept are able to assemble different structures each time. Rounded systems may be built with all LIBERA FL52, FL76 and FL105 models.
