18 X 16 m RL76A Double-pitch

18 X 16 m RL76A Double-pitch

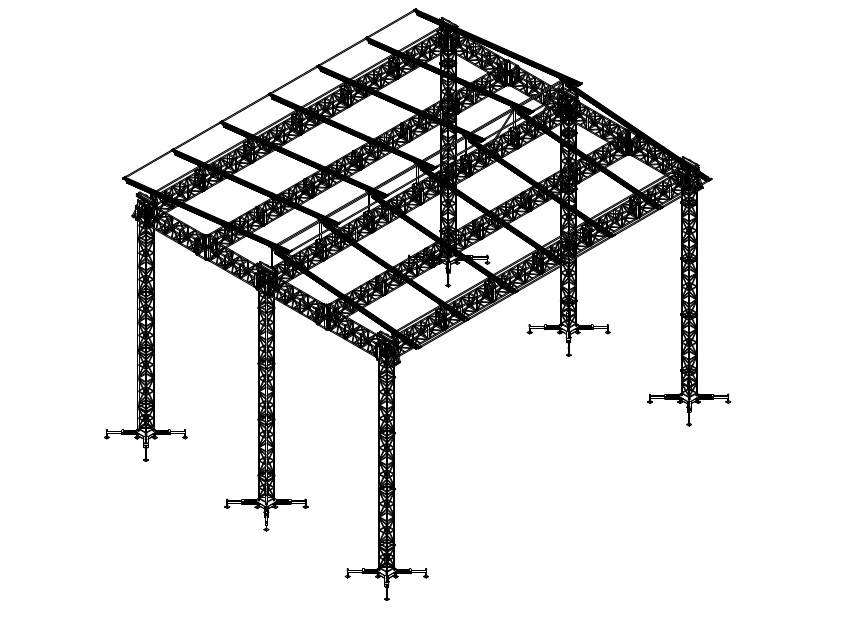

Double-pitch, high performance, 18 x 16m roof system with steel forks for events that require high loading capacity and wide spans.  UDL: 9,000 kg.

Call us for offer

Get your quote

Basic info

  • Heights range* from 7 to 11 m
  • Main truss RL76A
  • Towers 6 x Maxitower 40
  • Uniformly distributed load UDL ** 9000 kg
  • Chain hoists 1000 kg
  • Total weight 8200 kg
  • Volume 76 m3
  • Set-up time & number of workers 5 hrs / 6 w

Download PDF
