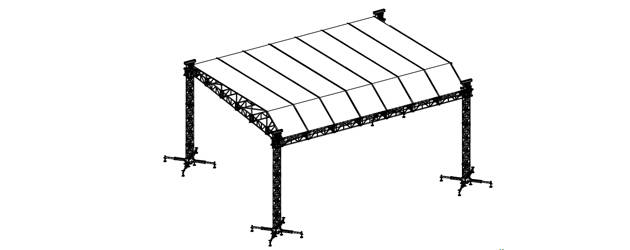

LIBERA FL52 double-pitch roof system. Dimensions: 16x12m. Uniformly distributed load UDL: 4500 kg

Call us for offer

Get your quote

Basic info

  • Dimensions: 16 x 12 m
  • Heights range: from 7 to 11 m
  • Main truss: LIBERA FL52
  • Towers: 4 x Maxitower 40
  • Uniformly distributed load UDL: 4500 kg ≈
  • Chain hoists: 1000 kg
  • Total weight: 5075 kg
  • Volume: 31 m3
  • Set-up time & number of workers: 4 hrs / 4 w

LIBERA is an open structural system. Roof systems in LIBERA 52 consist of Maxitowers and a LIBERA FL52 grid structure. The actual span can reach 16 metres, to which side wings may be added.
Some standard configurations are available, but – as always in the case of LIBERA – countless solutions are possible thanks to the modular system.
