PR60 Revolution

  • Chords A ,Extruded tube ø 50 x 4 mm EN AW-6082 T6
  • Diagonals B, Extruded tube ø 25.4 x 3.17 mm EN AW-6082 T6
  • Ends C, Aluminium forks connectors, EN AW-6082 T6
  • Fixing points D, Extruded tube    50 x 50 x 3 mm, EN AW-6082 T6
  • Connection system KHLP, Cylindrical pin + safety R-clip

The most innovative solution…basically a revolutionary way to carry moving lights mounted on pre rig type of trusses. Differently from  the standard trusses, in this version the mounting of the moving lights can be done by one person only.Once the carriages equipped with Teflon skates is mounted on the moving light …the latter can be easily slide into the truss along the two “C” profiles which acts as rail. A set of steel pins will fix the light into basically everywhere along the truss!!!

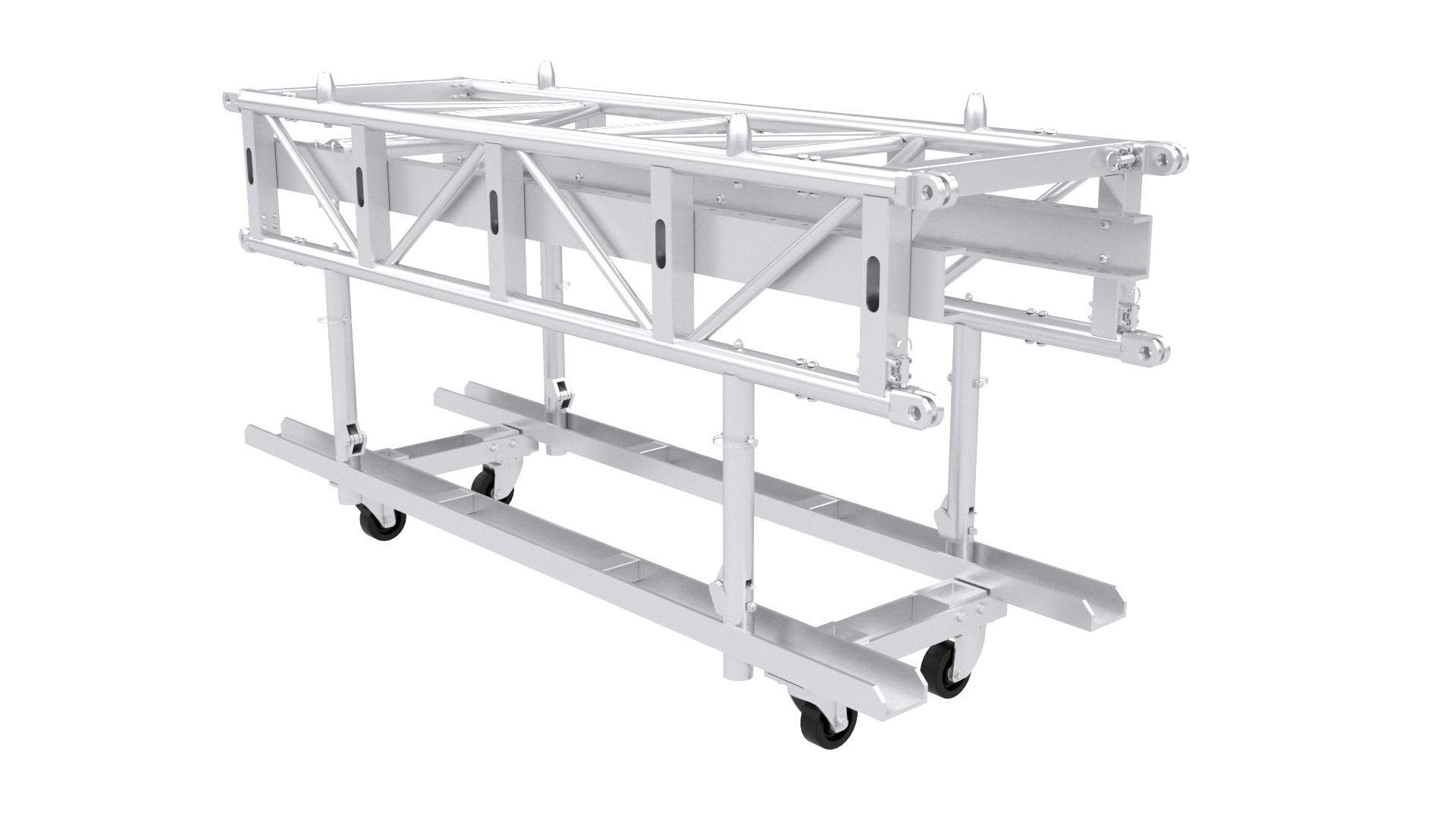

Each pre-rig “dolly” comes with foldable and adjustable in height legs; caster frames for easy transport and manoeuvrability during load in/out operations. To decrease storage space, dolly can be pile up one on the other.
