TX30SA

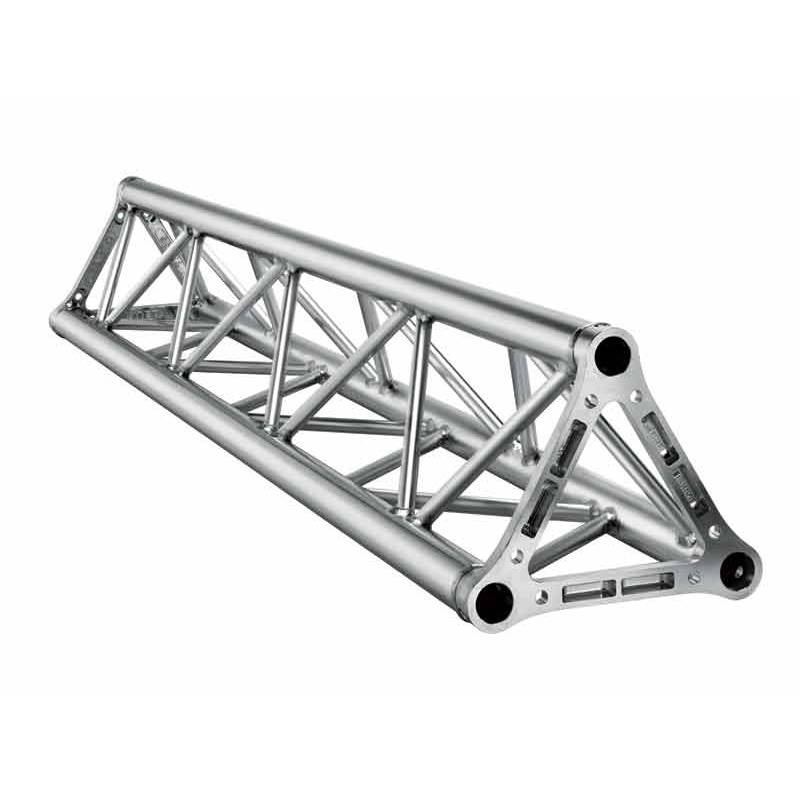

Triangular section aluminium truss with 29 cm long sides.
  • Chords A: extruded tube Ø 50x2 mm EN AW 6082 T6
  • Diagonals B: extruded tube Ø 18 x 2 mm EN AW 6082 T6
  • Ends C: aluminium casting plate EN AC 42200 T6
  • Connection systems QXFC: quick-fit kit; QXSM10: bolt connection kit



This is the most popular version of all our triangular trusses. It is manufactured using 6082 extruded aluminium alloy, with a high load-bearing capacity and twist-resistant strength.
The diagonal chords have been re-configured and their diameter changed to improve the aesthetic appearance and increase the overall strength of the truss.
