QX25SA

Square section aluminium truss with 25 cm long sides.
  • Chords A: extruded tube Ø 50.8 x 1.6 mm EN AW 6060 T6
  • Diagonals B: extruded tube Ø 14 x 1.5 mm EN AW 6060 T6
  • Ends C: aluminium casting plate EN AC 42200 T6
  • Connection systems QXFC: quick-fit kit QXSM8: bolt connection kit

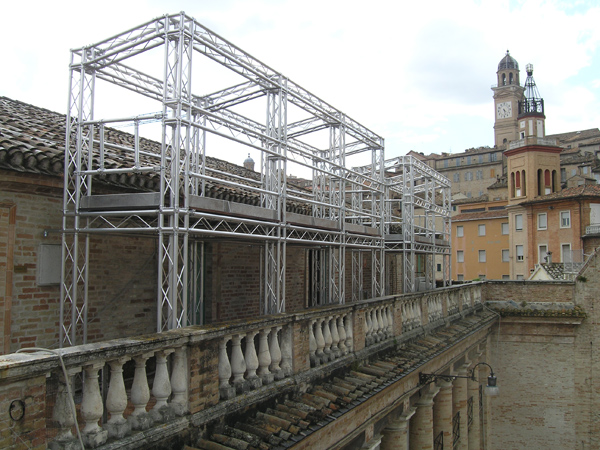

It is the lightest professional structure, yet it is able to guarantee a reasonable loading capacity and span. The internal 14 mm diameter diagonal components are flush which decreases the aesthetic impact of this truss, which may therefore also be used in small areas.
