FL76

Flat section high-load 6082 aluminium alloy truss with 76 cm long sides and fork connection.
  • Chords A: extruded tube Ø 50x4 mm EN AW 6082 T6
  • Diagonals B: extruded tube Ø 30x3 mm EN AW 6082 T6
  • Braces C: extruded tube Ø 50x4 mm EN AW 6082 T6; Ends D: steel forks connector11SMnPb37
  • Connection system KHLP: Cylindrical pin + safety R-clip; KHLM+KHLF

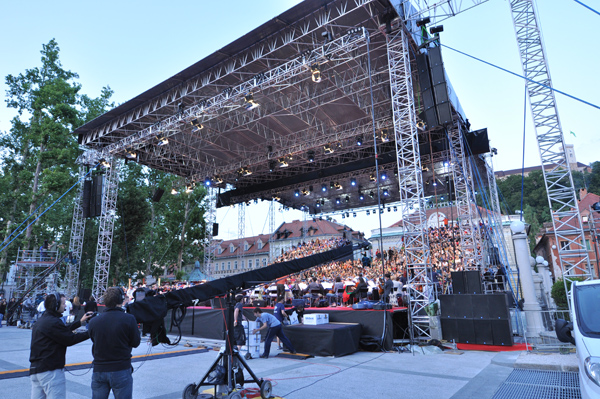

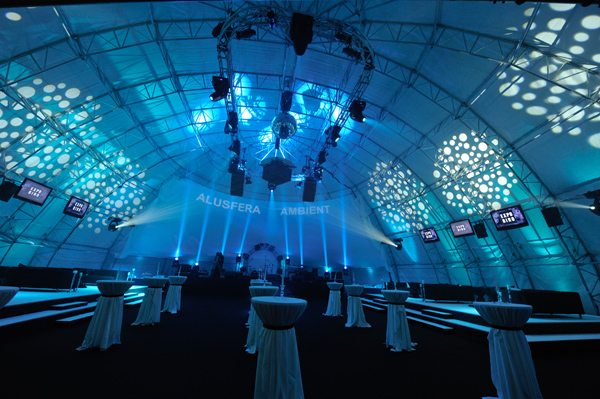

This LIBERA System is ideal for large grids and complex installations, allowing to build structures of up to 22 metres long with standard centre-to-centre distances. Indoors, it is suitable for theatre grid structures, and TV and cinema studios with innumerable advantages.
