QX40SA

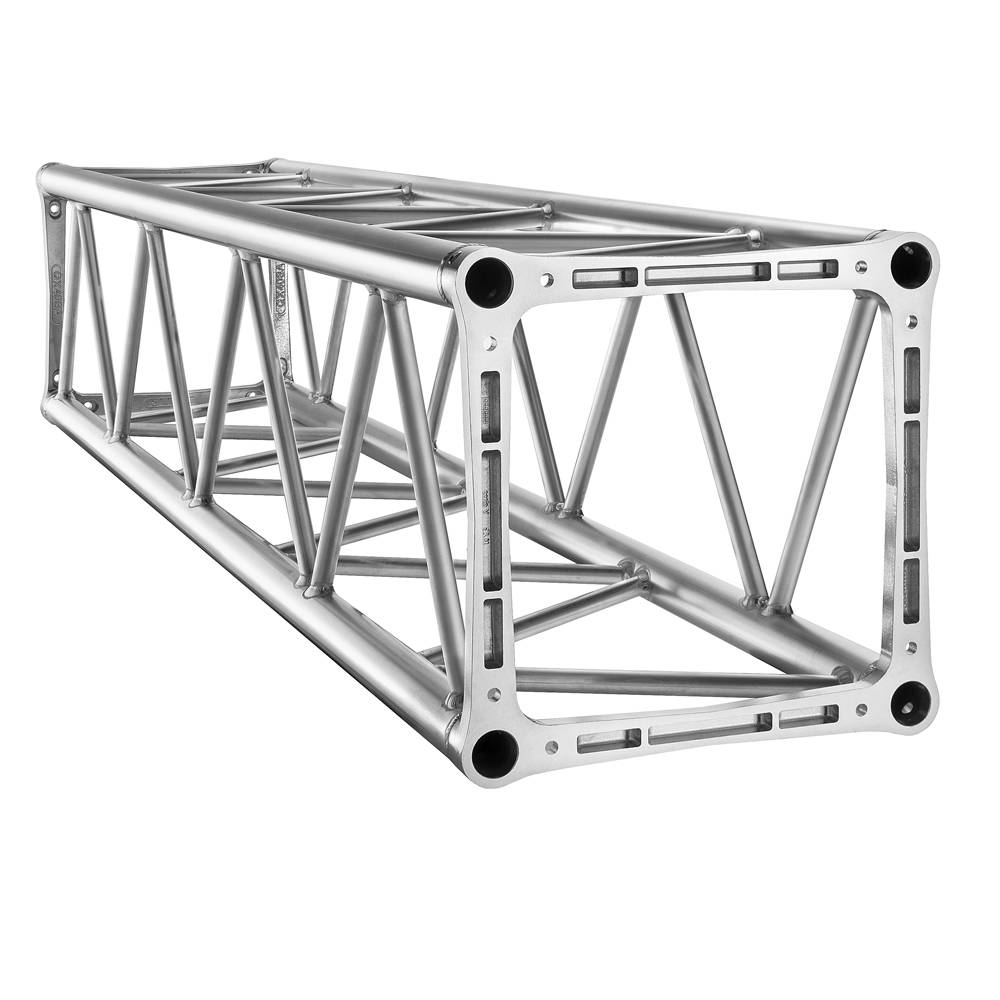

Square section aluminium truss twist-resistant version with 40 cm long sides.
  • Chords A: extruded tube Ø 50 x 2 mm EN AW 6082 T6
  • Diagonals B: extruded tube Ø 20 x 2 mm EN AW 6082 T6
  • Ends C: aluminium casting plate EN AC 42200 T6
  • Connection systems QXFC: quick-fit kit; QXSM10: bolt connection kit

It replaces the old truss QX40S. It achieves better resistance thanks to the introduction of diagonals on all the faces.
